If you're putting together a warehouse racking system, picking the right beam length is a huge deal. It dictates your storage capacity, safety, and everyday workflow. Among all the options out there, the 96-inch pallet rack beam is the absolute industry standard for selective pallet racking.
Why? It's simple math. A standard GMA pallet in North America is 48 inches deep and 40 inches wide. When you load these into a standard selective rack, the 48-inch side goes in, meaning the 40-inch width sits across the beam.
Two standard pallets placed side-by-side take up 80 inches. A 96-inch beam gives you those 80 inches plus a crucial 16 inches of extra breathing room. That space gives your forklift operators the margin of error they need to load and unload pallets quickly and safely without smashing into the upright frames or rubbing against other pallets. It's the perfect balance of high-density storage and operational efficiency.
Need More Density? Enter the 144-Inch Beam
Just as the 96-inch beam is perfectly sized for two pallets, the 144-inch pallet rack beam is the natural step up if you want to store three standard pallets side-by-side.
Using 144-inch beams can really boost your storage density in long aisles by cutting down on the number of vertical upright frames you need to buy and install. Just keep in mind that longer spans mean more weight, so 144-inch beams usually require heavier, thicker steel to prevent bowing and safely hold three fully loaded pallets.
Partner With Integrity Material Handling Systems
When you build your facility around standard 96-inch teardrop beams, you're setting yourself up for easy future expansion. The teardrop connection is incredibly easy to add on, reconfigure, or replace parts as your business grows.
You can read more about buying used material here: https://integritymh.com/insights/what-to-know-before-buying-used-pallet-racking-cost-condition-and-compliance
You don't have to wait around for months to get your warehouse up and running.

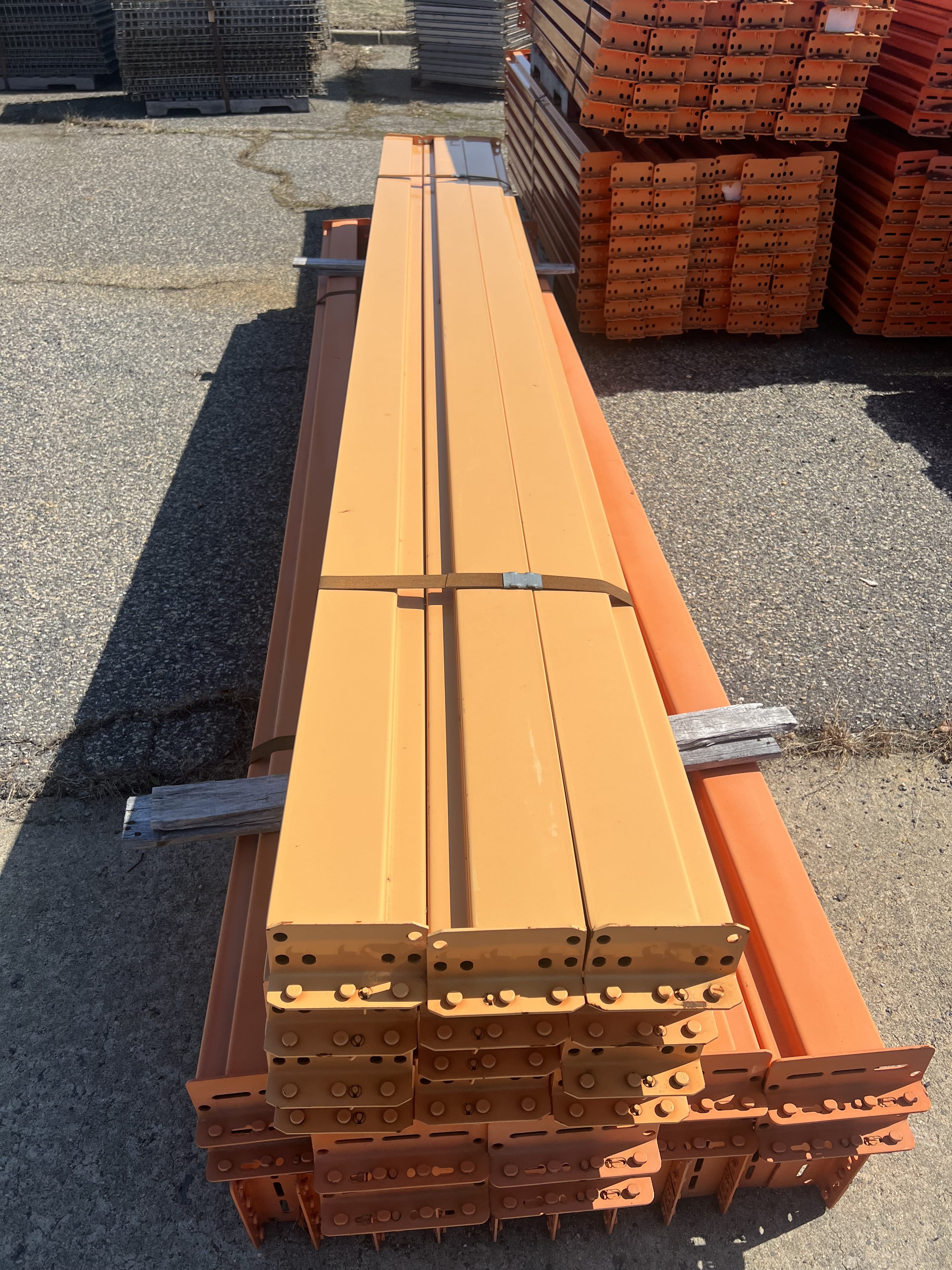

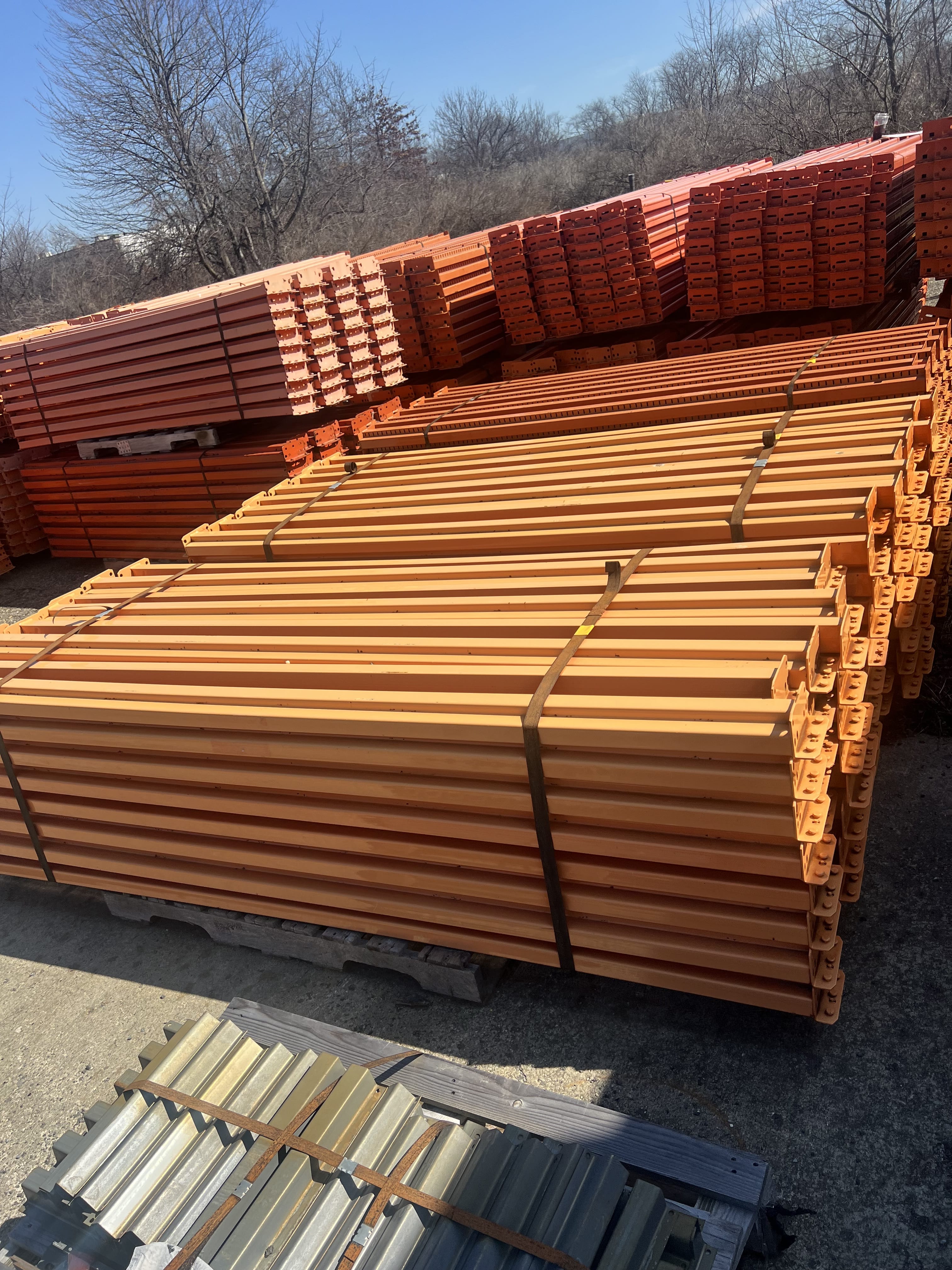

Integrity Material Handling Systems has thousands of 96-inch teardrop beams ready to ship from our Cranbury, New Jersey facility right now.
Check out our full inventory here: https://integritymh.com/inventory
Whether you need to quickly replace some damaged safety components or you're outfitting a brand-new fulfillment center, we have the massive, on-hand inventory to make it happen without the long manufacturer lead times. Visit https://www.integritymh.com to get your beams fast!
Still not sure what you need?
Give us a call at 201-848-0054, email us at dm@integritymh.com.
You may also find this previous post helpful:
https://integritymh.com/insights/how-to-determine-the-appropriate-rack-system-for-your-storage-needs
